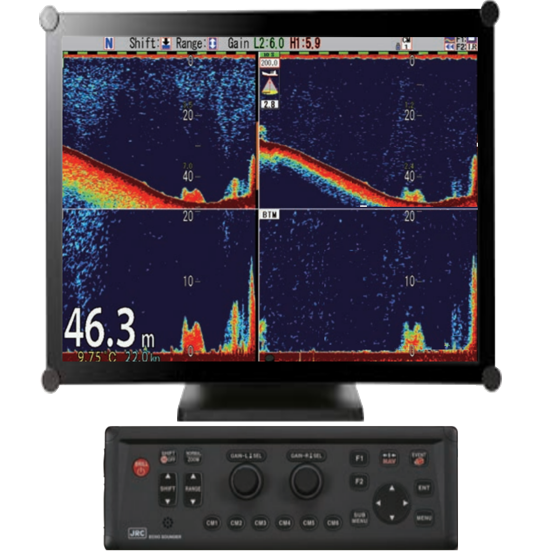

JFC-180 Dýptarmælir

Öflugur 4 tíðna 3Kw Black box dýptarmælir fyrir millistóra og stærri báta.

Möguleikinn á 4 tíðnum gerir kleift að greina betur milli fisktegunda sem leiðir til betri veiðistýringar, eykur aflaverðmæti og minnkar kostnað.

Helstu eiginleikar:

  • Öflugur 3 kw sendir
  • Black box hönnun fyrir tölvuskjá
  • Einfalt stjórnborð sem gerir notkun Hraðvirka og þægilega
  • Miklir tengimöguleikar
  • Þróuð stafræn myndvinnsla
  • 4 tíðnir samtímis
  • Flýtiminnistakkar
  • Mikið langdrægi
  • Ölduleiðrétting frá GPS áttavita
  • Tíðni, 38-75 og 130-210 Khz

Specifications

Model JFC-180BB
Processor unit NCM-1810E
Operation unit NCH-1800E
transducer
(Output frequency)
TDM-052A (38 to 75kHz and 130 to 210kHz)
TDM-062A (38 to 75kHz and 85 to 135kHz)
Selectable frequency
range
24 to 240kHz 0.1kHz step
Output method Simultaneous/Alternate
Display type Owner supply (XGA compatible output through RGB connector)
Display ranges 1 to 3000m, 1 to 2000l.fm (8 ranges can be set to users choice)
Zoom ranges 1 to 260m, 1 to 180l.fm
Range units m, ft, fm, l.fm
Presentation modes High frequency, Low frequency, 1 to 4 frequency, Zoom image (Bottom lock, Bottom discrimination, Bottom zoom, Zoom, Bottom follow zoom), Nav mode, Vertical split, Horizontal split, Mix A-scope can be displayed at all above modes
Presentation colors 64 colors, 16 colors, 8 colors, Monochrome
Back ground colors Marine blue, Blue,Dark blue, Black, White, Nighttime color, Other 4colors
Alrams Bottom, Fish, Temperature*2, Speed*3, Arrival*4, XTE*4
Image speed 9 steps & stop
Functions Interference rejection, Color rejection, VRM, Noise reduction,White line, Water temperature correct, Boat speed correct,Store image (500 images), Sona-Tone, Fishing Hot Spot, Event memory, Simple plotter, Panel illumination, Power reduction,External trigger, Detection area display, CM key, Water Temp.graph, Individual range operation, External memory storage (SDcard, USB memory), Heaving compensation
Auto functions Range, Shift, TVG, TX Power, White line
Languages Japanese, Chinese, English, French, Greek, Italian, Korean, Spanish,Thai
Input data formats and sentences NMEA0183 Ver.1.5/2.0/3.0
GGA, GLL, HDT, MTW, MWV, RMC, VHW, VTG, ZDA
Output data formats and sentences NMEA 0183 Ver.2.0 (DBT : Ver.1.5)
DBT, DPT, GGA, GLL, HDT, MTW, MWV, RMC, TLL, VHW, VTG, ZDA
NMEA ports 2
Power supply 21.6 to 31.2VDC
Power consumption 50W or less (24VDC)
Environmental Operating temperature : -15 to +55℃
Water protection : IPX5 (Operation unit)
